Product Category:Module Border Adhesive

Product Features:Description: UV 5201 is designed for sealing and bonding the frames of OLED displays. It protects OLED devices from contamination, moisture, and oxygen, while ensuring that the adhesive itself doe...

Hotline:13316998426
Product Features
Description:

UV 5201 is designed for sealing and bonding the frames of OLED displays. It protects OLED devices from contamination, moisture, and oxygen, while ensuring that the adhesive itself does not cause contamination. This series of products features low curing temperature, minimal residual curing agents, low volatile residues, strong adhesion, water-boil resistance, and excellent moisture and oxygen barrier properties.

Storage and Shelf Life:
The product should be stored in vacuum-sealed aluminum foil bags in a dry environment at 15–25°C. The shelf life of unopened products is 6 months.

Health and Precautions:
Please refer to the Material Safety Data Sheet (MSDS) for proper handling and disposal instructions.


Important Information – Please Read Carefully:
The information provided herein is believed to be accurate. However, since the conditions and methods of using our products are beyond our control, this information cannot replace customer testing to ensure the product is safe, effective, and fully suitable for the intended application.

The recommendations provided should not be construed as infringing any patent rights. This document does not include all safety information required for the safe use of this product. Before use, please read the product, its safety data sheet, and container labels to obtain information regarding safe handling and potential health hazards.


Application scope

Application Scope: Frame sealing for OLED and E-Paper (electronic paper) displays.

Product parameters

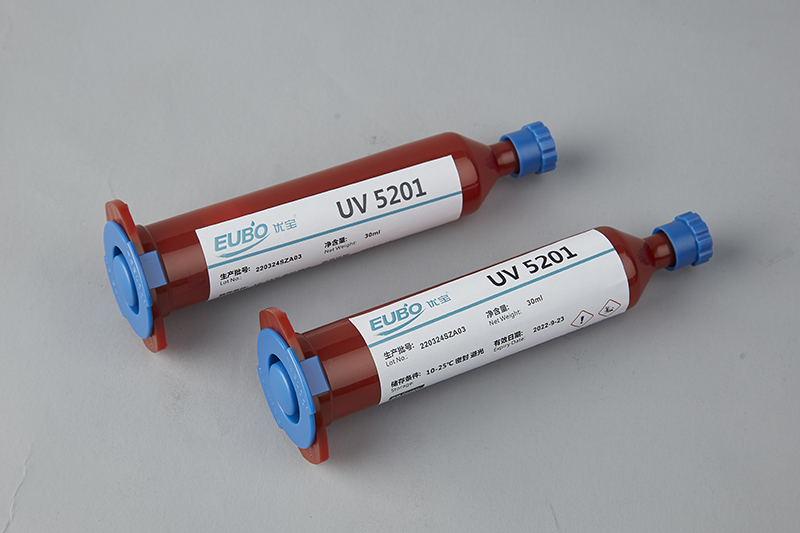

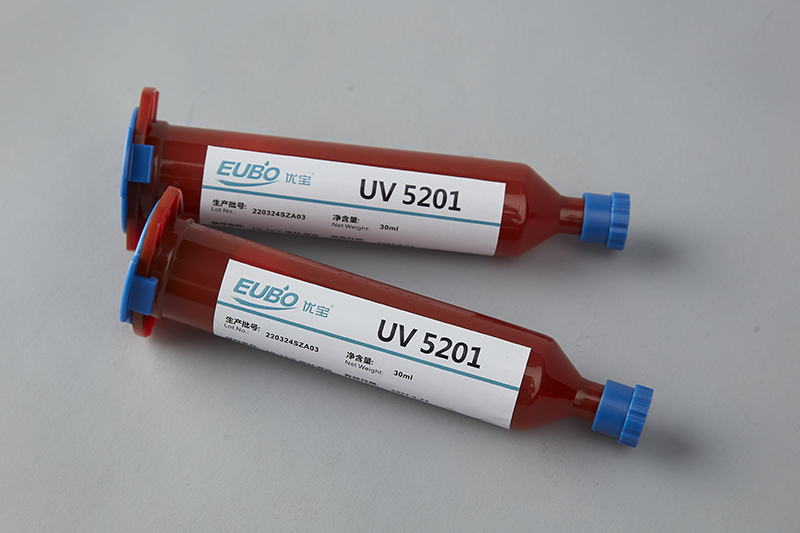

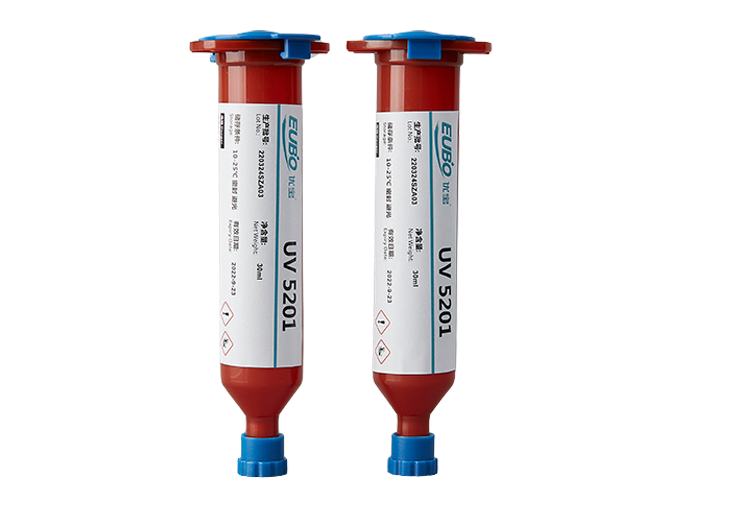

Technical Parameters of OLED Display Module Frame Adhesive UV 5201

Property

Specification

Product

UV 5201

Application

OLED / E-Paper Edge Sealing

Appearance

Light yellow

Viscosity

400 mPa·s

Glass Transition Temperature (Tg)

67°C

Hardness

78D

Shear Strength

17 kg (PET/Glass, 4 × 4 mm)

Curing Conditions

10000 mJ/cm2 (395 nm)

Storage Conditions

3 months @ -20°C
